Latch-type Toggle Clamps GH-36020 Push Pull Metal Toggle Clamp Capacity Holding Welding Repairing
Type: Push-pull Clamp
Surface Finish: Galvanized
Item Weight: 379 g
Size: 125 x 50 x 98.6mm(L*W*H)
Package Dimensions: 312cm*198cm*178cm
Product Origin: China
Lead Time： 30 Days
Holding Capacity： 1800 N
Handle Opens： 144.5 Degree
Plunger Stroke: 30 mm

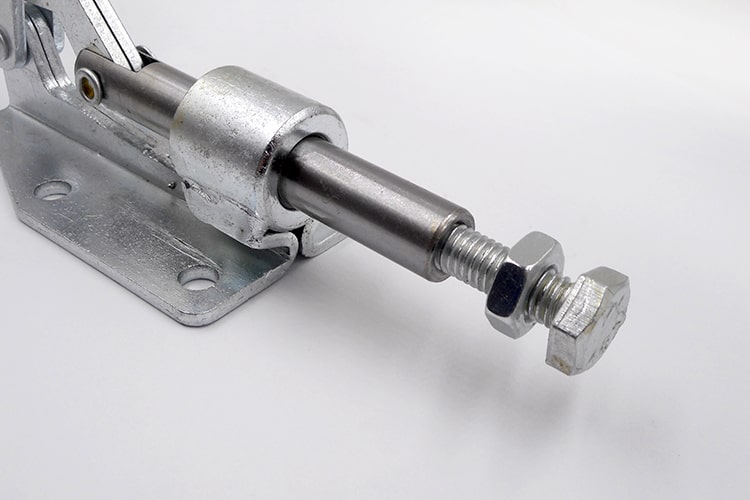

Spindle Supplied： M10 x 50
– High carbon steel is durable, holding capacity is strong.
– To provide a clamping force, good grip stability, chuck moving fast, efficient and has a positioning function of manual rapid clip.
– Its role is for a fixed object, positioning the workpiece to facilitate the production and processing, greatly improving
– Plastic cover handle for easy, safe and comfortable operation.
– Large clamping force, no movement, no rebound, etc.
Material: Galvanized iron
Weight:Approx 379 g
Color:As Picture Show
1.Please allow 1-3mm errors due to manual measurement.
2.Due to the difference between different monitors, the pictures may not reflect the actual color of the item.
The unit in CAD drawing is millimeter(mm.)
