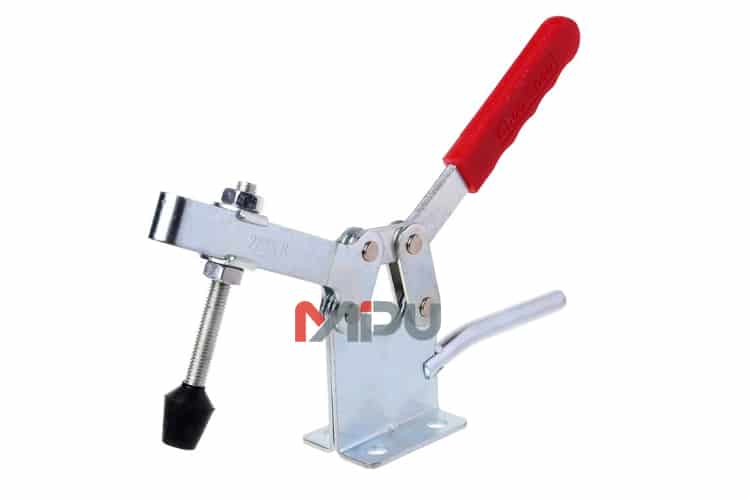

Horizontal Quick-Release Handle Toggle Clamp 400KG Holding Capacity ML5-220

Technical Details
Type:                                   Horizontal Toggle Clamp
Model:                                ML5-220
Material:                           Iron
Surface Finish:              Galvanized
Item Weight:                   773 g
Size:                                     240x 50x 99.5mm(L*W*H)
Package Dimensions:  312cm*198cm*178cm
Product Origin:              China
Lead Time:                     30 Days
Holding Capacity:       4000 N
Spindle Supplied:        M10 x 100
Bar Opens:                      75 Degree
Handle Opens:              77 Degree

Dimensions

Description:
Bar Opens 75°
Handle Opens 77°
Spindle Supplied M10x100
Size: 240x 50x 99.5mm(L*W*H)
Holding capacity force: 4000 N

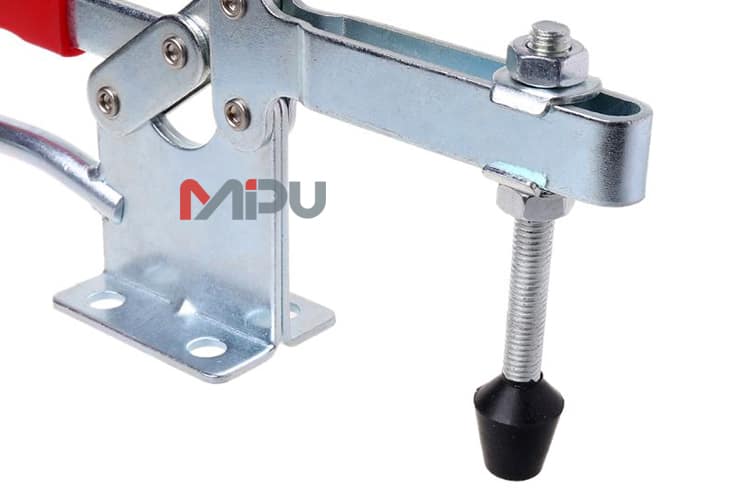

Material: Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance; Oil and Stain resistant red vinyl solid hand grips, complete with adjustable rubber pressure tips
Design: Low height design. Retracted clamp will allow for vertical removal of clamped item, mechanism allows maximum clearance
Application: A rock-solid grip to install on jigs, tool fixtures, or movable bases
–100% brand new and high quality.
–Easy, safe and comfortable operation.
–Light-duty Plunger clamp that locks in extended or retracted position.
–Oil and Stain resistant red vinyl hand grips.
–Widely used in processing or assembling the fixed clamping,
flip lock buckle luggage and other industrial, agricultural, testing.

This Horizontal Quick-Release Toggle Clamp, is a must-have addition to your jig assembly.
With its sturdy construction and efficient design, this essential tool ensures that you achieve a rock-solid grip on your work piece, thus providing a hold that won’t slip.

The unit in CAD drawing is millimeter(mm.)

Safe Packaging

Safe packaging eliminates risks during transportation. We do everything to make toggle clamps safe and sound.

Payment & Delivery

Lead Time: 20 days after received 30% deposit
Payment: T/T, L/C at sight, Western Union
Free samples for one to three pieces, Freight on customers’ side
LCL by express, e.g: FEDEX, DHL,UPS,TNT,etc
FCL or LCL by ship

How to custom your toggle clamp?

Custom your adjustable toggle clamp is simple. It is only 6 steps

1. Firstly, we will listen you carefully and understand your needs.

2. Second, Maipu will provide you drawing before sample is made.

3. Third, We will follow your comments on the sample.

4. After the adjustable toggle clamp sample is approved, we will start production.

5. Before delivery, Maipu will assemble adjustable toggle clamp and check the quality.

6. We will contact you to make sure everything is OK after shipment.

What we care for you?

1. We care quality by using quality material and inspecting products 3-5times during production process.

2. We save your shipping cost by working with professional forwarders and optimizing shipping.

3. We understand you may need spare parts. We provide you extra spare parts and assembling video.

Why choose Maipu?

We care our customers business. When you succeed, we succeed.

We always try to provide you with the best value for money, with strict quality control and efficient business system which saves unnecessary cost as much as possible. We add strategic value and innovative thinking.

Choosing a reliable supplier is important. Maipu spent a tremendous amount of time and money on research and development to evolve our product lines and design capabilities. We have quality control process to make sure quality is satisfied.

Application
FAQ

Can you custom design and custom make unique toggle clamps?

Yes, our core competence is to make custom toggle clamps.

Do you accept small qty or trial order less than MOQ?

Yes, we accept small qty or trial order to support our clients.

Can you print our logo, change the color and size for the toggle clamps?

Yes, sure. Everything can be changed for you.

Do you have some standard toggle clamps in stock?

Yes, we have

Will these rust?

If the surface coating is broken, it may rust, but if it is made of stainless steel, it will not rust.
