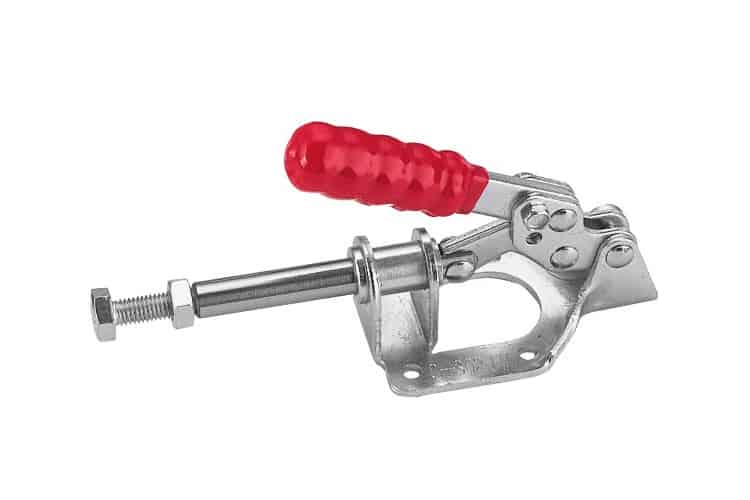

toggle Clamp Quick Release Tool 32mm Plunger Stroke Push Pull 136KG Holding Capacity Fixture toggle Clamps ML5-302-FM

Technical Details
Type:                                   Push-pull Clamp
Model:                                ML5-302-FM
Material:                           Iron
Surface Finish:              Galvanized
Item Weight:                   290 g

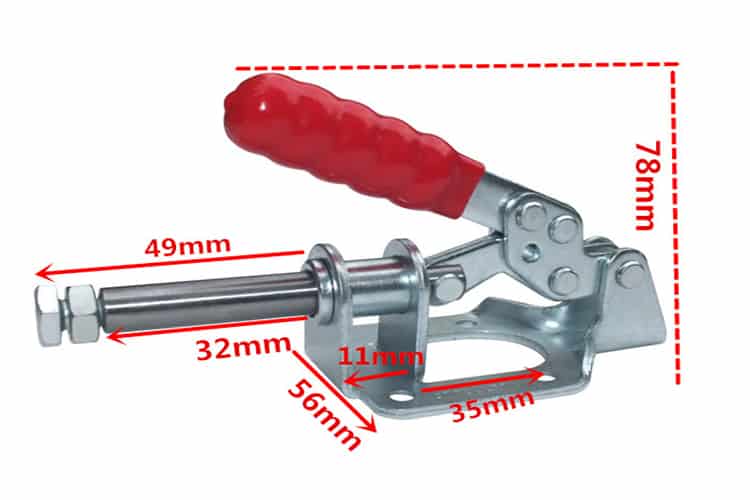

Size:                                     140x 56x 78mm(L*W*H)
Package Dimensions:  312cm*198cm*178cm
Product Origin:              China
Lead Time:                     30 Days
Holding Capacity:       1360 N

Spindle Supplied:          M8 x 30
Handle Opens:              80 Degree
Plunger Stroke:            32 mm


– High carbon steel is durable, holding capacity is strong.
– To provide a clamping force, good grip stability, chuck moving fast, efficient and has a positioning function of manual rapid clip.
– Its role is for a fixed object, positioning the workpiece to facilitate the production and processing, greatly improving
– Plastic cover handle for easy, safe and comfortable operation.
– Large clamping force, no movement, no rebound, etc.

Material: Galvanized iron
Weight:Approx  290g
Color:As Picture Show

1.Please allow 1-3mm errors due to manual measurement.
2.Due to the difference between different monitors, the pictures may not reflect the actual color of the item.

The unit in CAD drawing is millimeter(mm.)
