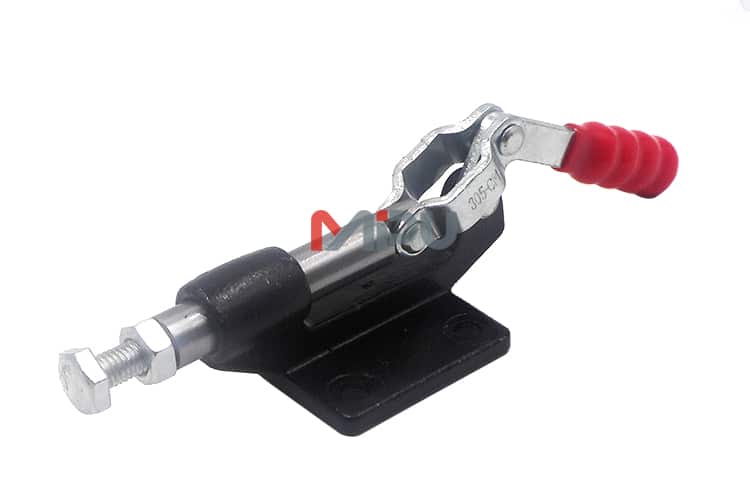

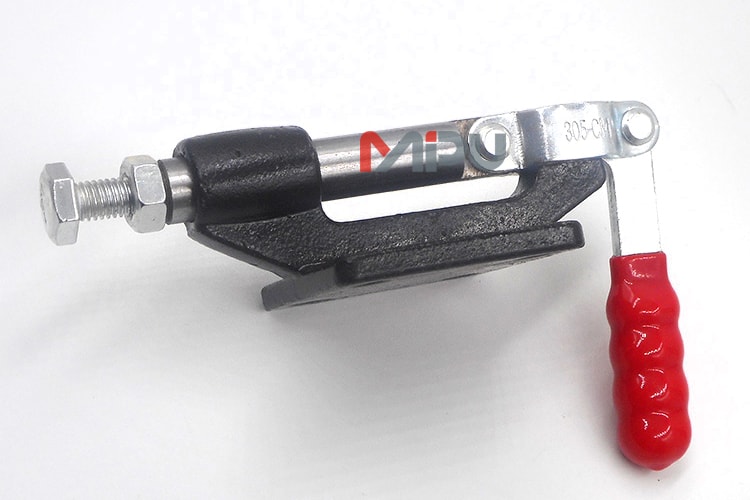

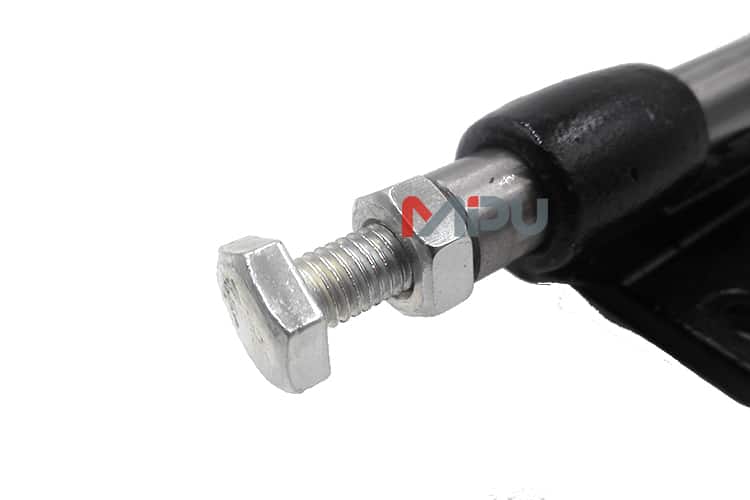

Push-pull toggle clamps ML5-305-CM Horizontal Switch Clamp Quick Clip Fixing Clamp

Technical Details
Type:                                   Push-pull Clamp
Model:                                ML5-305-CM
Material:                           Iron
Surface Finish:              Galvanized
Item Weight:                   340 g
Size:                                     149.5x 57x 97mm(L*W*H)
Package Dimensions:  312cm*198cm*178cm
Product Origin:              China
Lead Time:                     30 Days
Holding Capacity:       2270 N

Dimensions

Specifications:
– High carbon steel is durable, holding capacity is strong.
– To provide a clamping force, good grip stability, chuck moving fast, efficient and has a positioning function of manual rapid clip.
– Its role is for a fixed object, positioning the workpiece to facilitate the production and processing, greatly improving
productivity.
– Plastic cover handle for easy, safe and comfortable operation.
– Large clamping force, no movement, no rebound, etc.

Description:
Material: Galvanized iron
Weight:Approx  340 g
Color:As Picture Show

Note:
1.Please allow 1-3mm errors due to manual measurement.
2.Due to the difference between different monitors, the pictures may not reflect the actual color of the item.

The unit in CAD drawing is millimeter(mm.)
